Check for dust buildup, reseat connections.
Turn off and unplug machine
Take off the back panels
Unplug all wires from the PCBA on the back of the screen as well as the ribbon cable to the control deck
Remove the screws holding down the control deck
Take control deck out of cabinet and flip over
Take the 7 screws off on the back holding the plastic covering

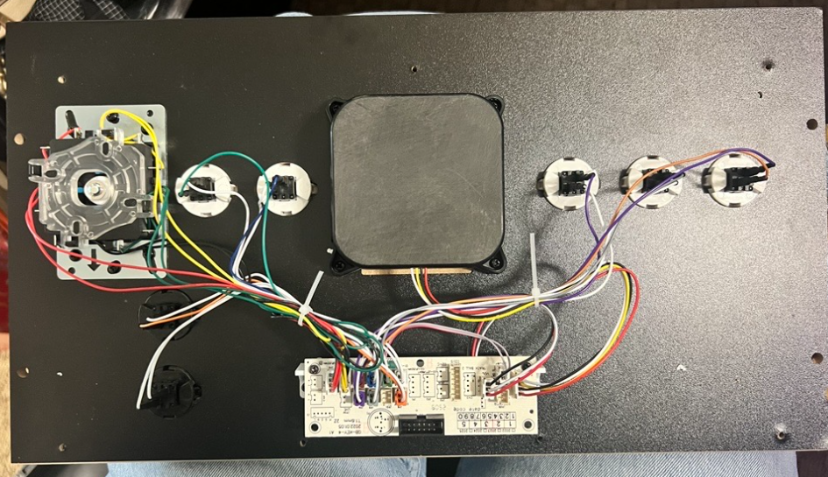

Now that the track ball and wires are exposed
You should be able to see the bottom of the trackball
Remove the plastic covering the bottom of the trackball (4 screws)
Now the box housing holding the track ball is lose
Keep wires connected

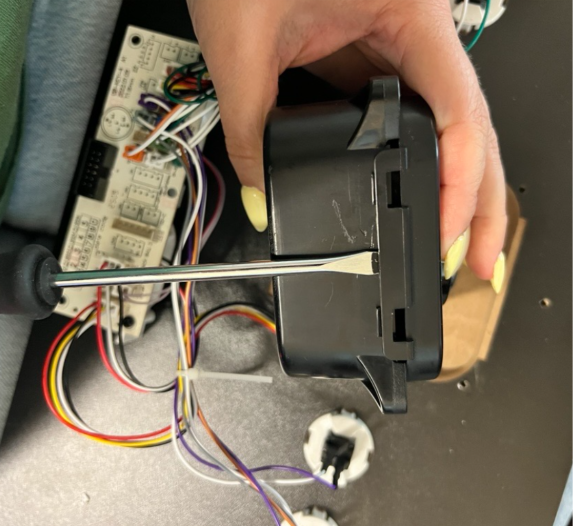

Use a flathead screwdriver and pry open the locks on both side of the housing

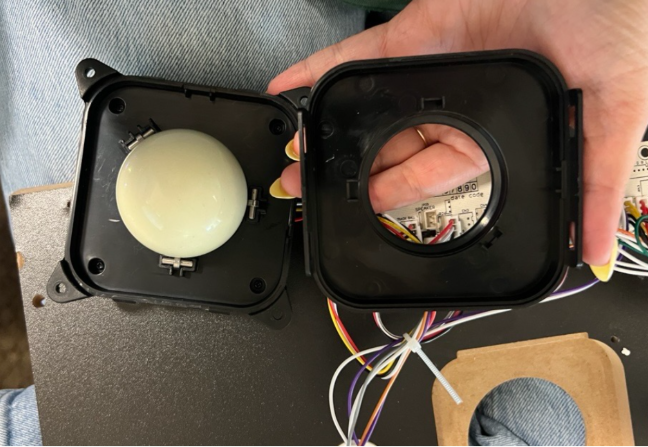

Use a microfiber cloth to wipe down the track ball and the rollers or use compressed air
Put the plastic covering back on for the rack ball
Take note of the orientation when you take off that covering it WILL NOT go back on unless it is in the correct orientation Move this note to the top.

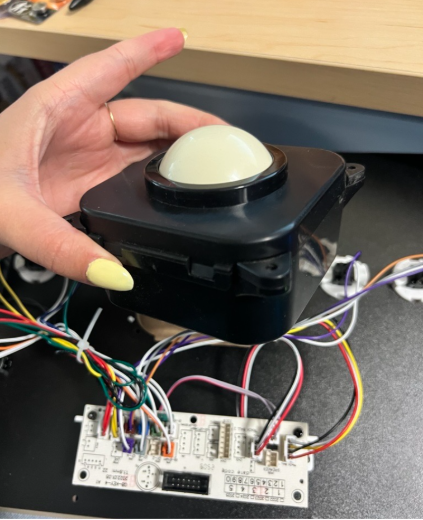

Put trackball in the control deck and screw the 4 screws in
Put the control deck covering back on (7screws)
Put control deck back in the cabinet
Screw control deck into cabinet (4 screws)
Plug in all wires again
Put back panels back on
Plug in
READY TO PLAY
